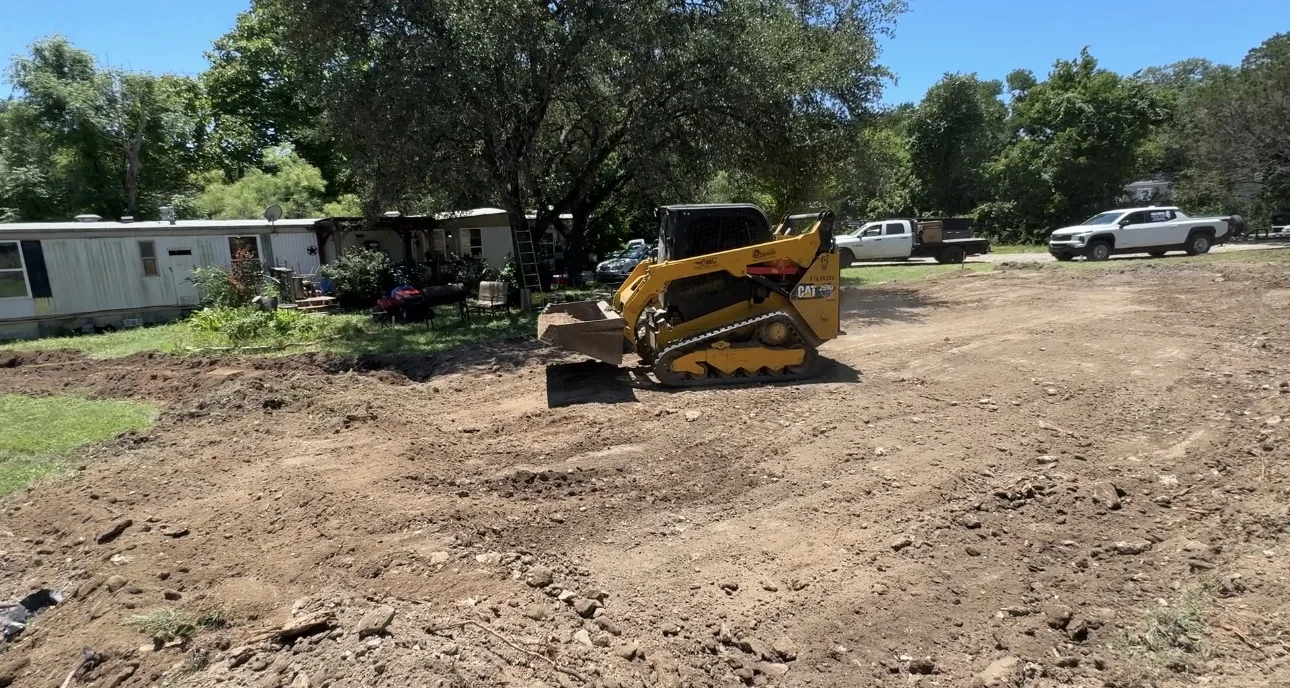

Grading & Dirt Work
Spread, cut and level soil, gravel and base material on driveways, pads, yards and job sites.
WHAT IT'S GOOD FOR01 02 03 04
More capacity for bigger jobs.
The 259D combines rubber-track traction with a vertical-lift loader path, making it useful for both ground work and loading material at height.

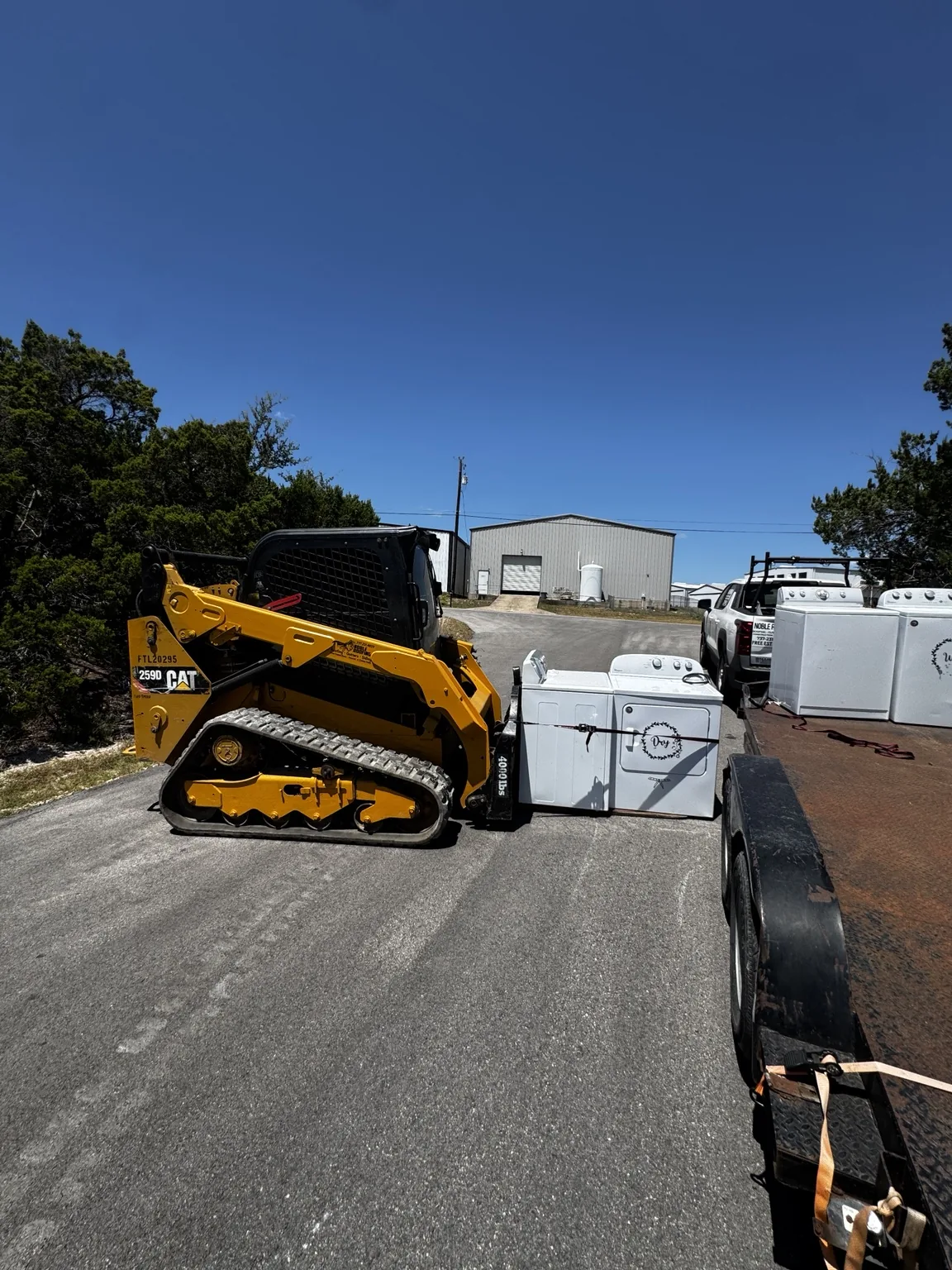

Loading
Move dirt, rock, mulch and debris and load trucks or trailers efficiently.

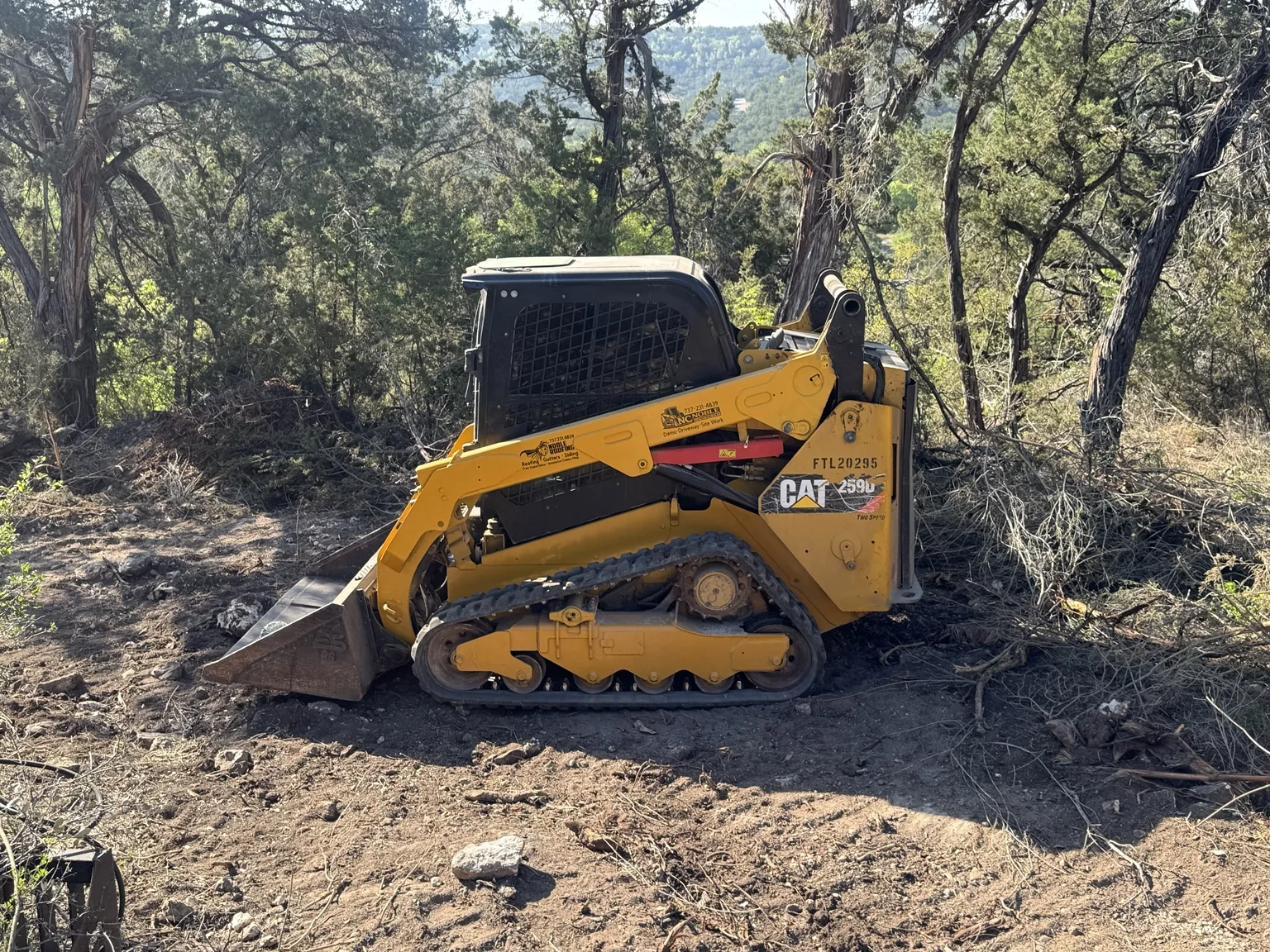

Land Clearing
Useful for brush cleanup, site preparation and material movement where a mini skid is undersized.

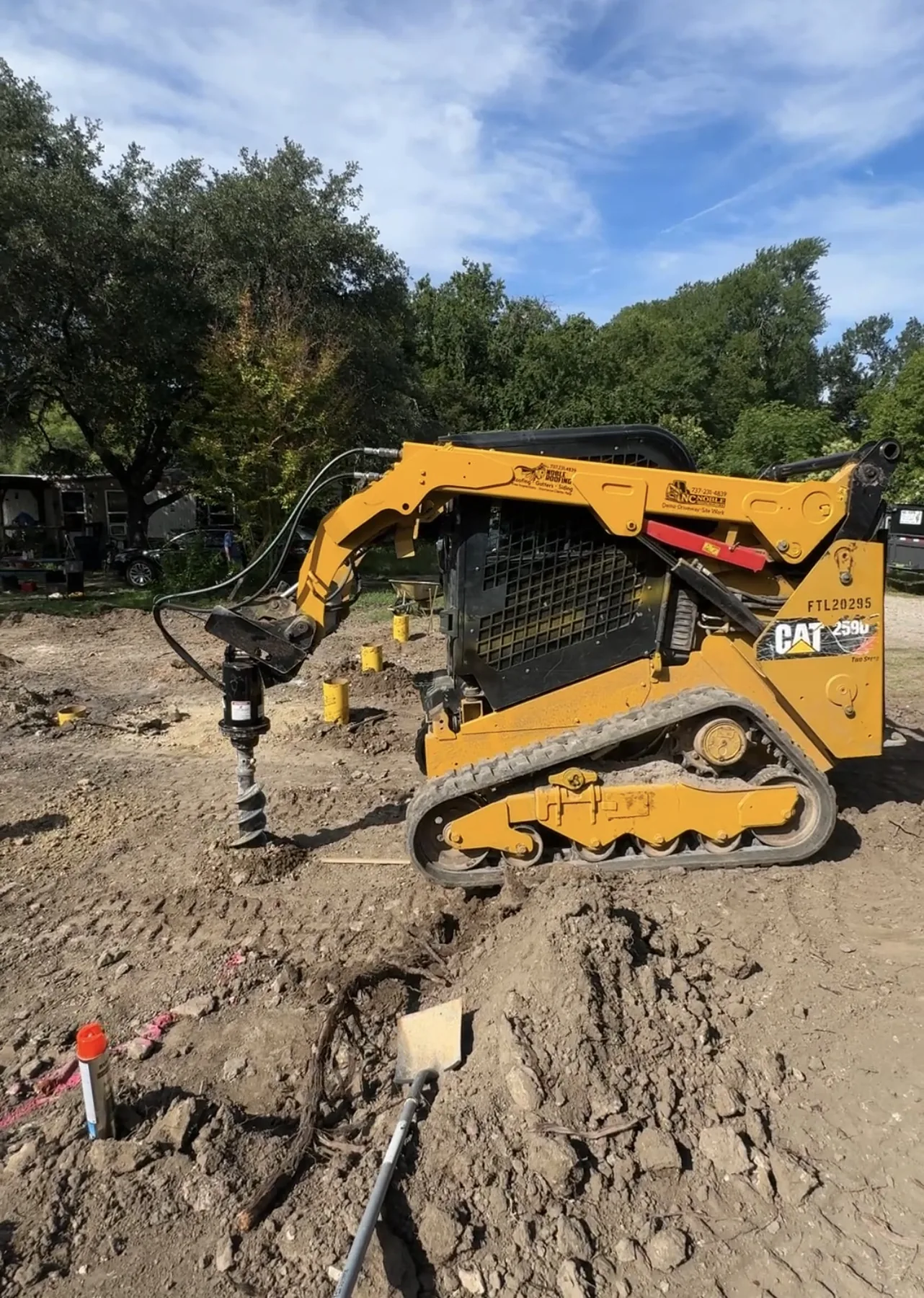

Auger Work
Auger availability can be requested for posts, piers and similar drilling work.
RENTER-FOCUSED SPECS
Know the machine before the job.
Model2019 CAT 259D Compact Track Loader
EngineCat C3.3B DIT turbo diesel
Net Power73.2 hp
Gross Power74.3 hp
Published Operating WeightApprox. 8,846 lb with 12.6-in tracks / 8,945 lb with 15.7-in tracks
Rated Operating Capacity2,030 lb at 35% tipping load
50% Tipping-Load Capacity2,900 lb
Tipping Load5,800 lb
Tilt Breakout Force5,035 lb
Published Width66 in with 12.6-in tracks / 69 in with 15.7-in tracks
Height to Cab83.1 in
Length Without Bucket108.9 in
Length With 66-in Bucket137.3 in
Bucket Pin Height121 in at maximum lift
Dump Clearance89.9 in at maximum lift
Travel Speed5.9 mph one-speed / 8.5 mph two-speed maximum
Standard Auxiliary Hydraulics20 gpm at 3,335 psi
Optional High Flow30 gpm at 3,335 psi on equipped machines
Published CAT specifications vary with track width, bucket, counterweights and options. Exact installed options and dimensions on Noble Construction's unit control. High-flow capability must be verified before using a high-flow attachment.
ATTACHMENTS
Current rental setup.
General-Purpose Bucket
Available for dirt, gravel, mulch, cleanup, loading and general grading.
Auger
Available by request. Bit size, compatibility and pricing are confirmed before the rental.
Attachment Approval
Do not install or use an attachment that Noble Construction has not approved for this machine.
Utility Locates
For auger or other ground-disturbing work, the renter is responsible for utility locating and safe digging practices.
PICKUP & DELIVERY
Plan transport before reserving.
Delivery Available
Noble Construction can deliver and pick up the CAT 259D. Pricing is calculated by location using the same delivery system as our other rentals.
Customer Transport
Any approved customer pickup requires a properly rated truck, trailer, hitch, brakes and securement setup for the machine plus attachments and trailer weight.
Access
Confirm gate width, overhead clearance, driveway strength, slopes and ground conditions before delivery.
Surface Protection
Rubber tracks reduce ground pressure, but this heavy machine can still damage turf, pavement edges, irrigation and soft ground.
RENTAL & APPROVAL BASICS
What renters need to know.
Machine Rate
$300 per full rental day. Multi-day machine rentals receive 3% off for each additional day after the first, up to 20%.
Operator Service
Add a Noble Construction operator for $100 per hour. Operator hours are added to the machine rental.
Machine-Only Approval
Machine-only rental is not automatically available. Applicants must provide operating experience and project details and receive approval before the machine is released.
Age & ID
Machine-only applicants must be 21 or older and present a valid ID before release.
Fuel
The CAT 259D uses diesel fuel. Fuel-return requirements are confirmed before release.
Damage
The renter is responsible for damage beyond normal wear, including misuse, overloading, improper attachments or avoidable track/undercarriage damage.
Cleaning
Return the machine reasonably clean and free of excessive mud, concrete, debris or material buildup. Excessive cleaning may be billed.
Safe Operation
Operate only within rated capacities and suitable jobsite conditions. Keep bystanders clear and never carry riders in the bucket or on the machine.
Need the CAT 259D?
Choose dates, delivery, operator service or machine-only application, attachment needs and job details.
